OUR STAGE LINES - STAGES BUILT FOR FESTIVALS AND TOURS AND  CORPORATE EVENTS

OUR STAGE LINES - STAGES BUILT FOR FESTIVALS

​​​

VF Titan 166 Double Mobile Stage Systems

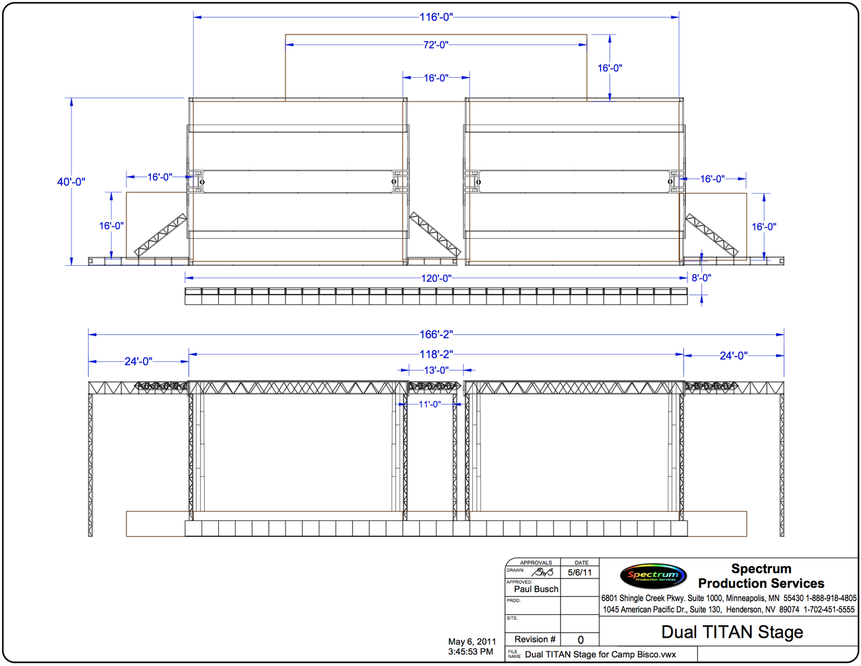

The Titan Mobile Stage 166 systems are an excellent choice for outdoor festivals with multiple acts and changeover time constraints. Total 166 ft wide, 40 ft tall, rigs 104,000 lbs, sets up in a few hours. Composed of  two 52 ft roof with 24 ft bays stage right / stage left and a 13 ft center bay - Manufactured by the team of experts at Visionfab. Certified structural engineering documentation is available on request.


166 x 40 Stage includes two 50 x 40 play decks, covered by two 52 x 40 roofs, 4 sets of stairs, removable wind walls on 6 sides and a high banner downstage rig package for 5 printed panels. Stage also includes large covered 40 x 20 wings on stage left and stage right and covered center work area. This system can include an upstage crossover decks, high loading docks, low loading docks, loading ramps, and covered front of house positions ( deck and cover )  all in four semi trucks. These systems set up in 6-8 hours with 18-20 stagehands.


Weather Protection - Full solid walls or 70% walls are available. The Solid walls reduce the wind resistance and need to be removed for high winds. The 70 % stays up rated to 70 MPH - Most systems are pictured here without walls for clarity of the systems. Weather protected work areas are also included in these systems


Adds - Spotlight Towers, Barricade, Rolling Risers, Camera Platforms, ADA Platforms, VIP platforms, Jib Platforms, Digitally Printed Soft Goods, etc. are also available through Spectrum


Advantages

- All points can dead hang any where on the grid ( unlike the others who have dedicated rig locations )

- Riggers can climb through the roof grid ( unlike the others ) this speeds load in, load out and accommodates changes

- Electronic remote controlled system - Operator can roam free 120 feet during set and strike for visibility and safety ( others can not )

- Titan systems are rated for a 70mph wind with windwalls attached.  (Unlike other systems rated at 40)

- All wind walls are removable for safety (unlike others)

- Titan systems downstage truss is actually downstage, where you need it (not an extension tarp with limited capacity over the downstage edge)

- Titan systems fly bays have far offstage columns to the ground for stability and load capacity ( others do not )

- 900,000 miles & 2000 show days without fail ever ( unlike the others ) make Titan166 a first choice for mobile stage needs

TITAN MOBILE STAGE SYSTEMS

VF TITAN 166 DOUBLE
